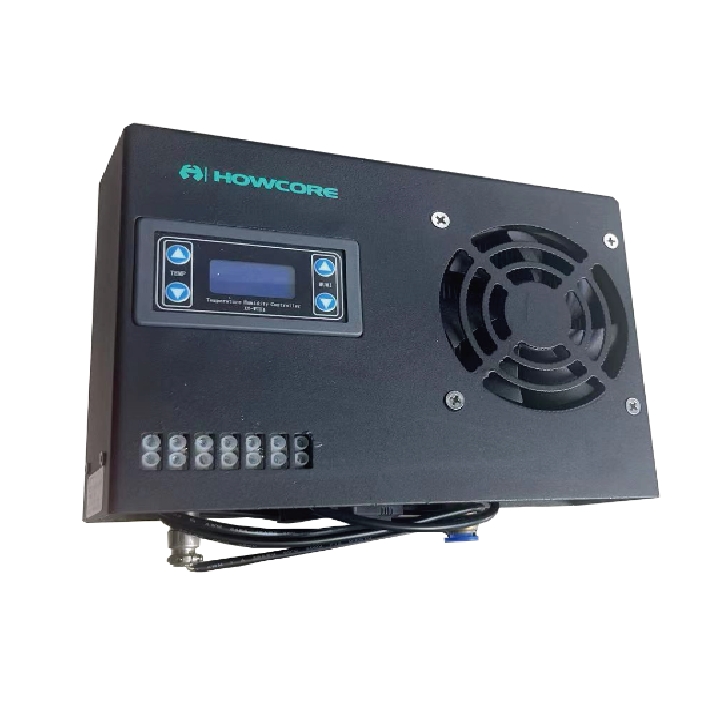

■ Product Overview

In the control cabinet, outdoor control cabinet and other small power transmission and transformation equipment, moisture in the air is easy to cause rust and corrosion of the metal body, shorten the service life of the equipment, and the insulation distance in the sealed box is compact. If the air is too wet to cause condensation, it will also cause serious consequences of tripping and even burning the equipment. At present, heating measures are mostly used to prevent condensation, which is simple and cheap. Although this method has played a certain role in preventing condensation, it does not really reduce the moisture content of the air, but only reduces the relative humidity of the air. When the temperature drops, the relative humidity will rise sharply. In southern China and coastal areas or basements, there is a lot of moisture in the air, so it is difficult to use traditional heating and exhaust dehumidification methods, especially when there is a large temperature difference inside and outside the cabinet or in the rainy season, serious condensation will occur, which directly threatens the safe operation of power transmission and transformation equipment.

■ product features

• Non heating: slight heat dissipation. Unlike other cheap heating methods, it blindly relies on heating to avoid condensation.

• Drainage intensity: pumping out water. It can really reduce the moisture content of the air, so as to reduce the relative humidity of the air.

• Low energy sumption: environmental protection and energy saving. The electronic components of the control cabinet are refrigeration and dehumidification, without compressor and refrigerant.

• Adjustable: LCD control. The display humidity can be adjusted freely, with 485 communication interface and remote control.

• Sheet metal parts: metal shells. Avoid the use of flammable substances such as plastics.

• Fine design: precise and reasonable. The design is ingenious, fashionable and easy to install.

• High quality: optimal configuration. Stable operation and long service life.

■ 技术规格

• Model: dh-2085

• Dehumidification capacity: 300g/d

• Working voltage: 220v/50hz

• Input power: 85W

• Circulating air volume: 80m ³/h

• Drainage mode: water pipe direct drainage

• Applicable area: 1-10m ³

• Volume: 170*125*200mm

• Weight: 0.38kg

• Size: 60x33x43

■ finished product identification code
