■ Product Overview

The compact high-performance fan heater can prevent the formation of water droplets or low temperature inside the cabinet and provide the appropriate air temperature inside the cabinet. This heater has two types: hdvl with fan and HDV without fan. When the fan fails The built-in temperature overload protection switch automatically cuts off and stops the heater to continue heating. In order to control the temperature or humidity within the ideal range.

■ product features

• Compact

• Long service life

• Safety temperature cut-off

• Guide rail clamping

• Flat design (space saving)

■ technical specifications

• Operating voltage: 120-240 ac/dc (min.110; max.265v

• Heating element: high performance heating tube

• Protection grade: P20

• Temperature safety protection: overheat protection in case of fan failure

• Heater: aluminum alloy casting

• Axial flow fan: 45m2/h (230VAC)

• Electrical connection: r200:3 × 0.75mm ² cable standard 0.5-2.5mm ²

• Connection terminal: ul94-0, black plastic ul94-0

• Installation method: 35mm DIN rail installation

• Installation position: vertical

• Operating/storage environment: -45~+70 ℃ (-49~+158 ° f)

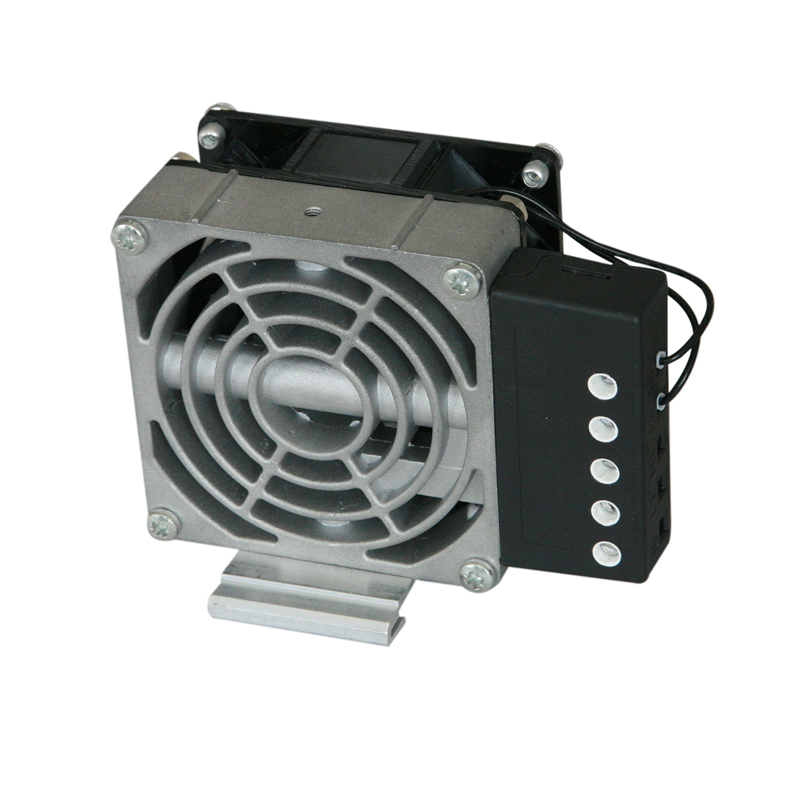

With fan

Without fan

■ product dimension drawing
