■ Product Overview
Effectively suppress radio interference generated by the power supply side or output measurement of the servo amplifier, and also suppress high-frequency leakage current (zero phase current). Especially effective in the range of 0.5MHz-5MHz.
■ Reference standards
Note: This product meets the UL94V-0 certification value (heat-resistant temperature 130 ℃), does not contain ozone depleting substances (ODC), and has not used ozone depleting substances (ODC) in the manufacturing process
■ Parameter size
| Product Name |
size(mm) |
AE(mm²)TYP |
Lm(mm)TYP |
quality(g)TYP |
picture |
AL(UH/N2) |
||||||
| A(±1.0) | B(±1.0) | C max | D(±1.0) | E(±1.0) |
J |
10KHz |
100KHz |
|||||
|
RF-BFSO1 |
65 |
15 |
42 |
50 |
18.3 |
6.5*11 |
121 |
78.1 |

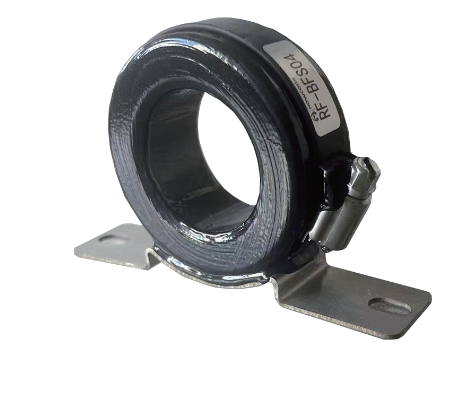

60 | picture1 |
13.8~23.1 |
18.5+30% |
|
RF-BFSO2 |
65 |
20 | 47 | 50 | 22 |
6.5*11 |
175 |
91.7 |
98.4 |
16.1~26.8 |
21.5±30% |
|
|
RF-BFSO3 |
80 |
19 | 57 | 65 | 30 |
6.5*11 |
186 |
120 | 140 |
17.0~28.4 |
17.4±30% |
|
|
RF-BFSO4 |
110 |
25 | 70 | 95 |
38 |
6.5*11 |
305 |
152 | 280 |
13.1~24.3 |
22.7±30% |
|
|
RF-BFSO5 |
135 |
20 | 88 | 115 | 40 |
6.5*11 |
384 |
174 |
425 |
12.4~20.8 |
16.6±30% |
|
|
RF-BFSO6 |
170 | 18 |
115 |
155 |
65 |
6.5*11 |
371 |
260 |
400 |
8.5~14.1 |
11.3±30% |
|
|
Product Name |
size(mm) |
AE(mm²)TYP |
Lm(mm)TYP |
quality(g)TYP |
picture |
AL(UH/N2) |
||||||||
| A(±1.0) | B(±1.0) | C max | D(±1.0) | E(±1.0) |
F(±1.0) |
I(±1.0) |
J |
10KHz |
100KHz |
|||||
|
RF-BFLO1 |
50 |
25.5 |
44.3 |
40 |
222 |
25 | 8.4 |
中5 |
212 |
89 |
115 |
picture2 |
4.5~7.5 |
6.0±30 |
|
RF-BFLO2 |
160 |
25.4 |
106.6 |
140 |
240 |
114.2 |
63.4 |
6.5*11 |
645 |
308 |
1200 |
3.8~6.3 |
5.0±30% |
|
|
RF-BFLO3 |
180 |
30 |
85 | 160 | 37 | 130 | 86 |
6.5*11 |
647 |
314 |
1450 |
3.6~6.0 |
4.8±30% |
|
|
RF-BFLO4 |
220 |
40 |
125 | 190 | 59 | 160 | 101 |
8.5*14 |
1200 | 421 | 3100 |
5.2~8.6 |
6.9+30 |
|
|
RF-BFLO5 |
250 | 39 | 145 | 220 | 60 | 190 |
113.2 |
8.5*14 |
1548 | 497 | 4200 |
5.3~8.8 |
7.0±30% |
|
|
RF-BFLO6 |
310 |
40 |
166 |
280 |
78 |
240 |
160 |
8.5*14 |
1577 |
597 | 5000 |
4.4~7.3 |
5.8+30% | |
Note: This product meets the UL94V-0 certification value (heat-resistant temperature 130 ℃), and does not contain ozone depleting substance ODC. Ozone depleting substance ODC was not used in the manufacturing process
