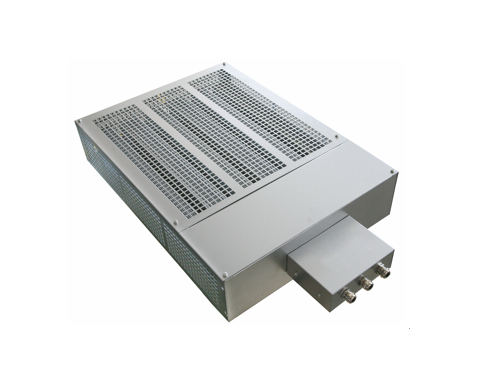

Aluminum Enclosure Resistor Assemblies(LRA)
Resistor assemblies was made by Aluminum Enclosure resistor and settled in cabinet,

Detail

■    Product Introduction

       Resistor assemblies was made by Aluminum Enclosure resistor and settled in cabinet,


          Power range:  0.5KW-12.5KW

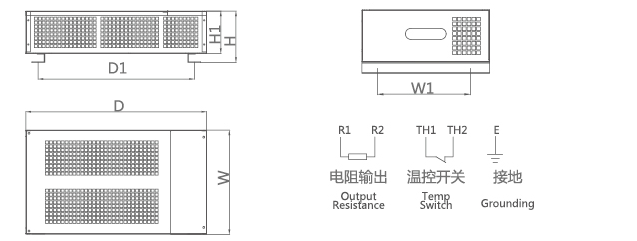

■    Product Size


     Type     Power(KW) Dimension W       D           H          W1         D1     Terminal    Cable  Combination
LRA 1 242 500 140 150 470 M6 6 1KW*1
LRA 2 242 500 140 150 470 M6 6 1KW*2
LRA 3 242 500 140 150 470 M6 6 1.5KW*2
LRA 4.5 345 600 170 325 530 M6 10 1.5KW*3
LRA 6 345 600 170 325 530 M6 10 1.5KW*4
LRA 8 415 690 170 395 665 M6 10 2KW*4
LRA 10 415 690 170 395 665 M6 16 2KW*5
LRA 12.5 415 690 170 395 665 M6 16 2.5KW*5

*Remark:Dimension can be customization

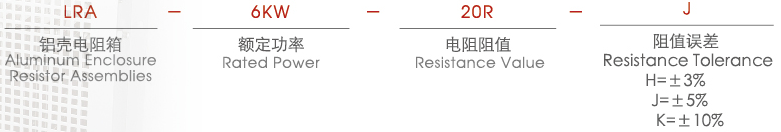

■  Product Identification Code
