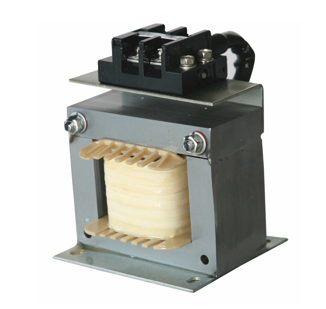

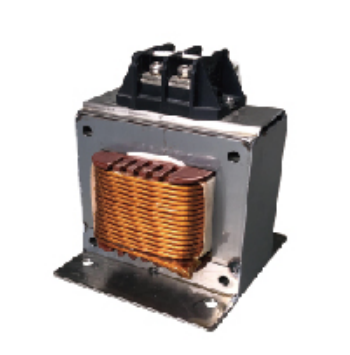

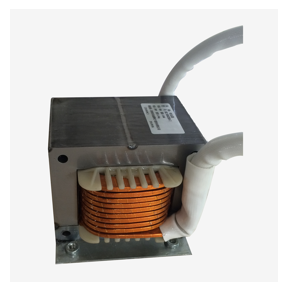

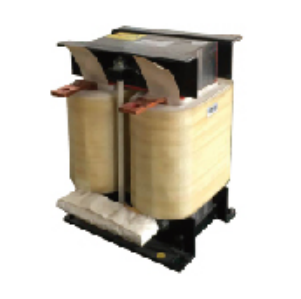

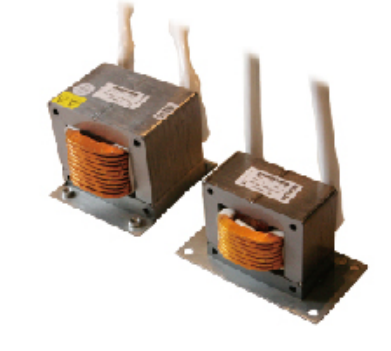

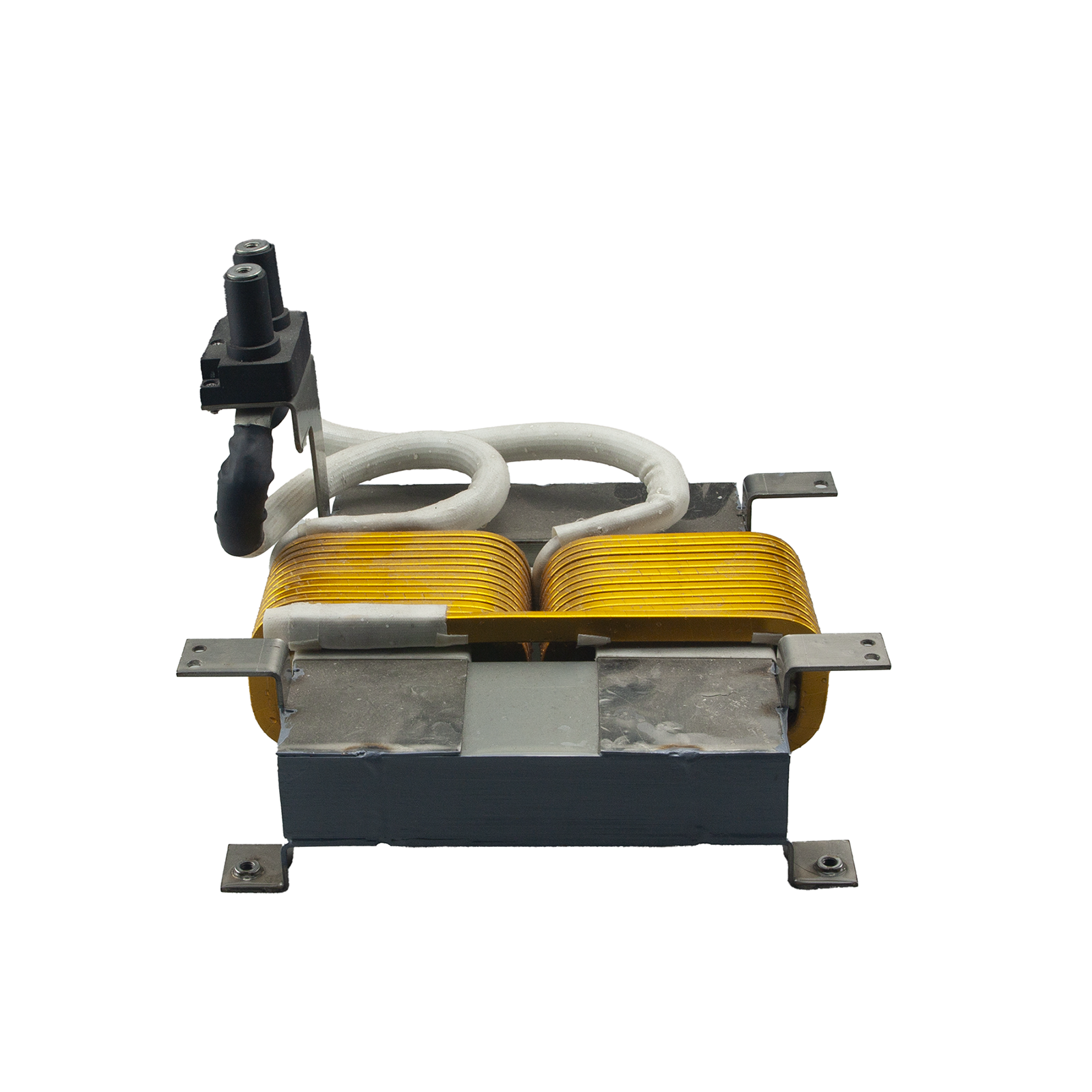

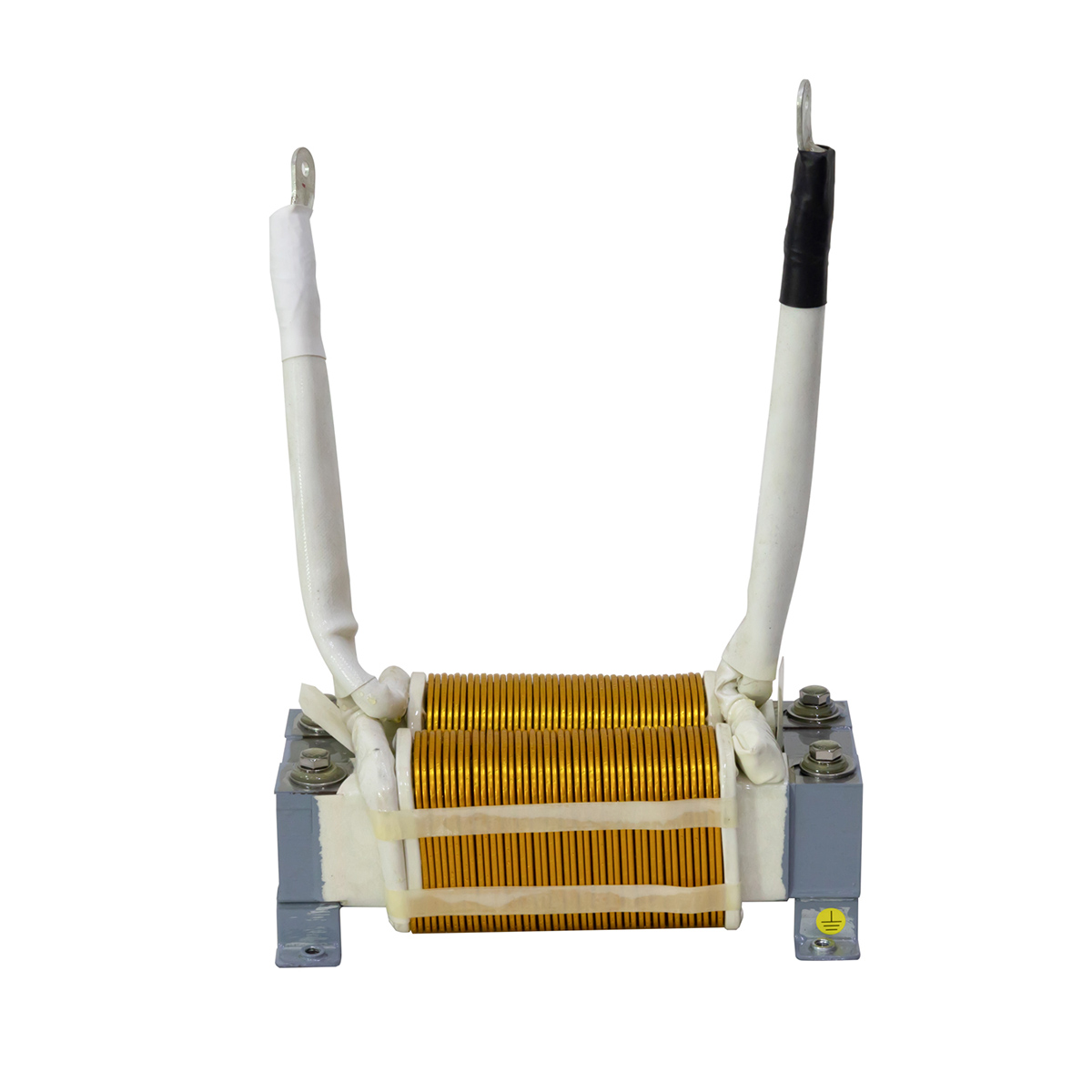

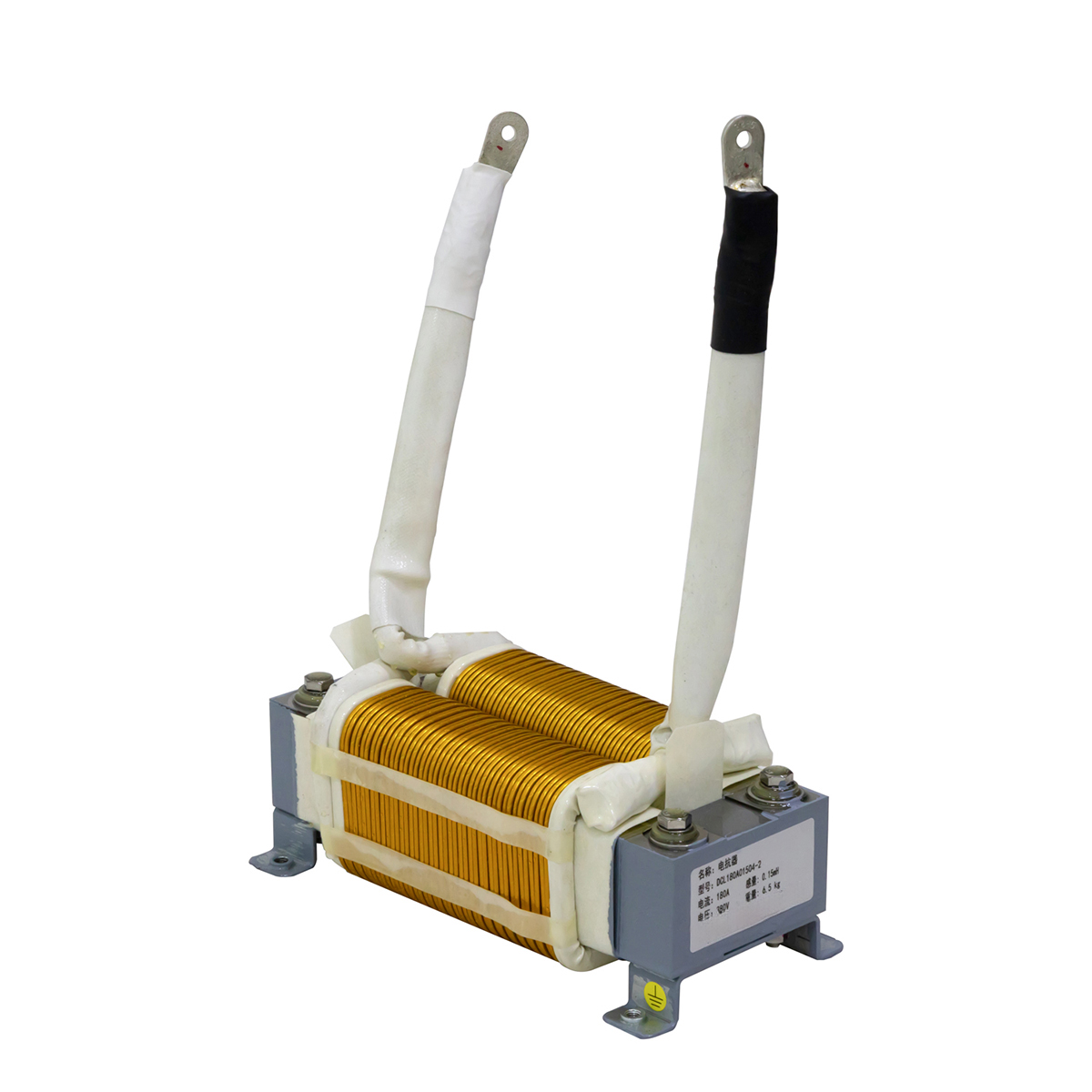

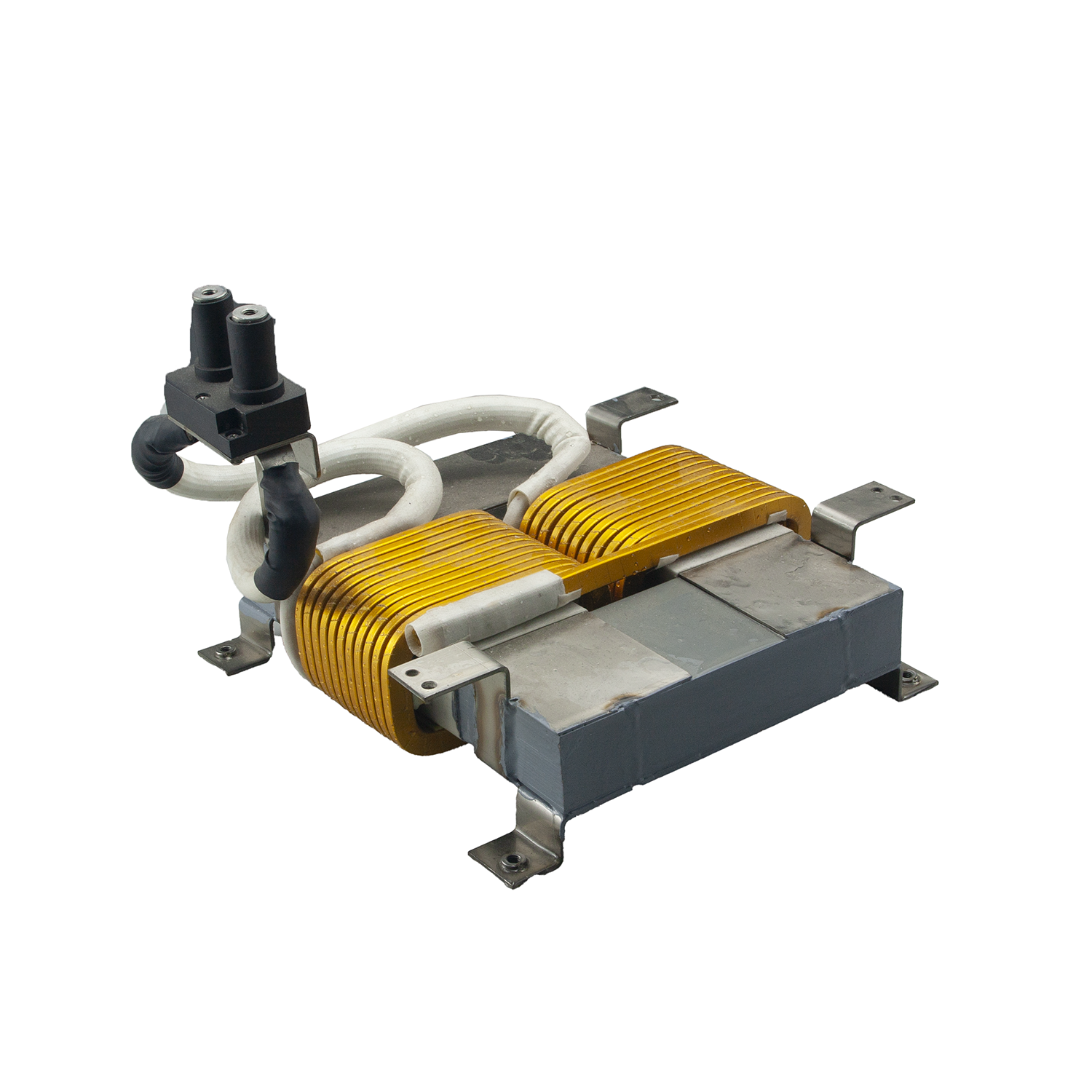

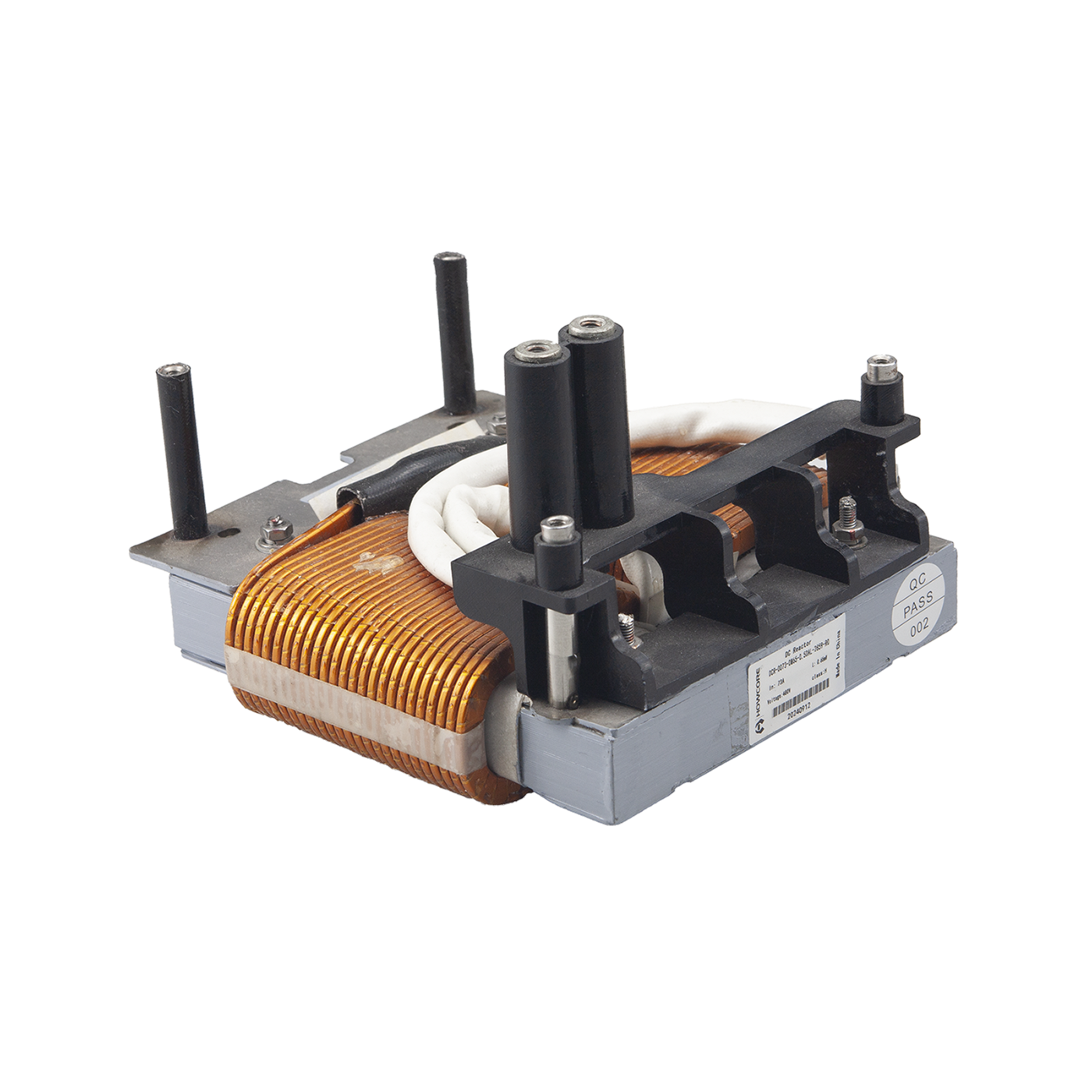

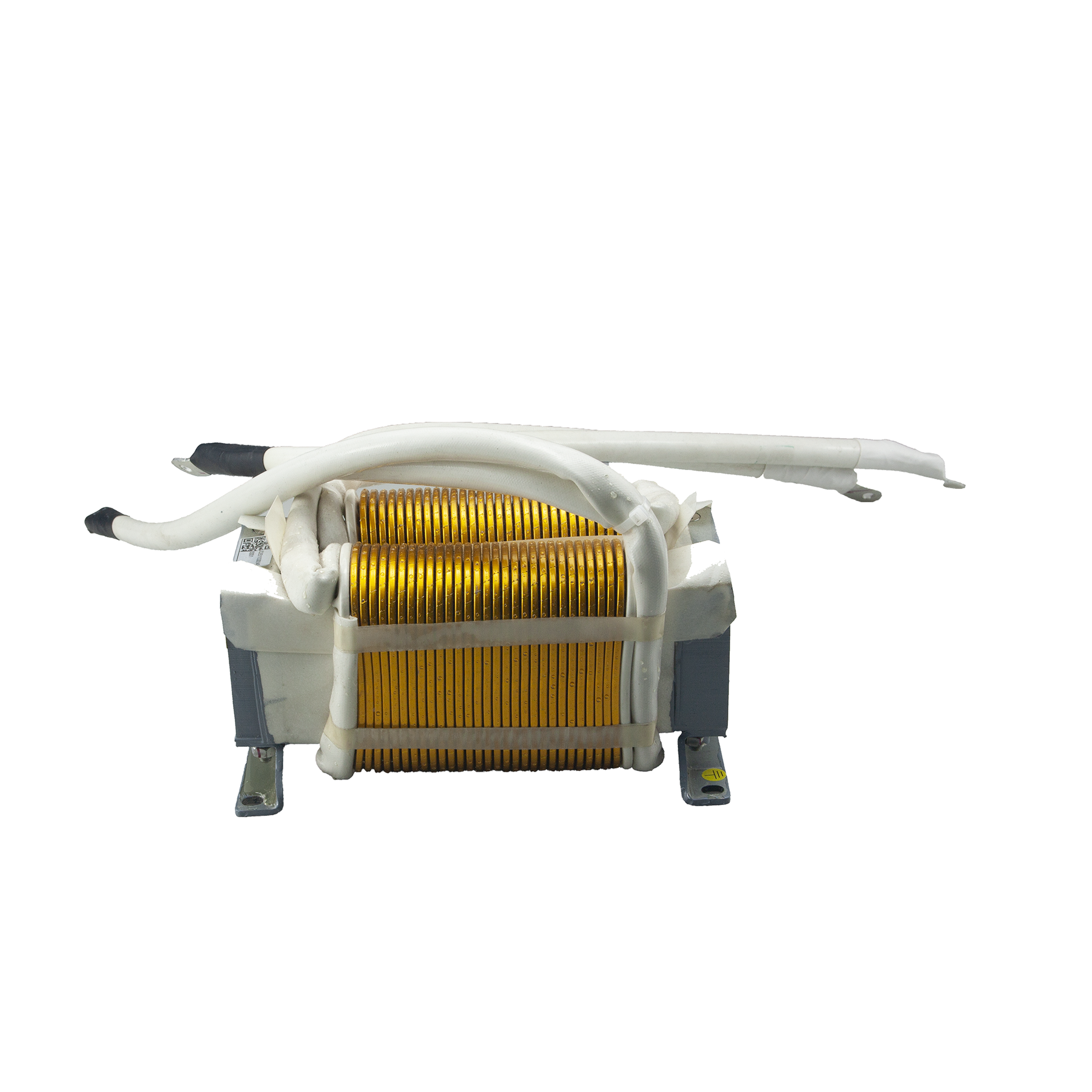

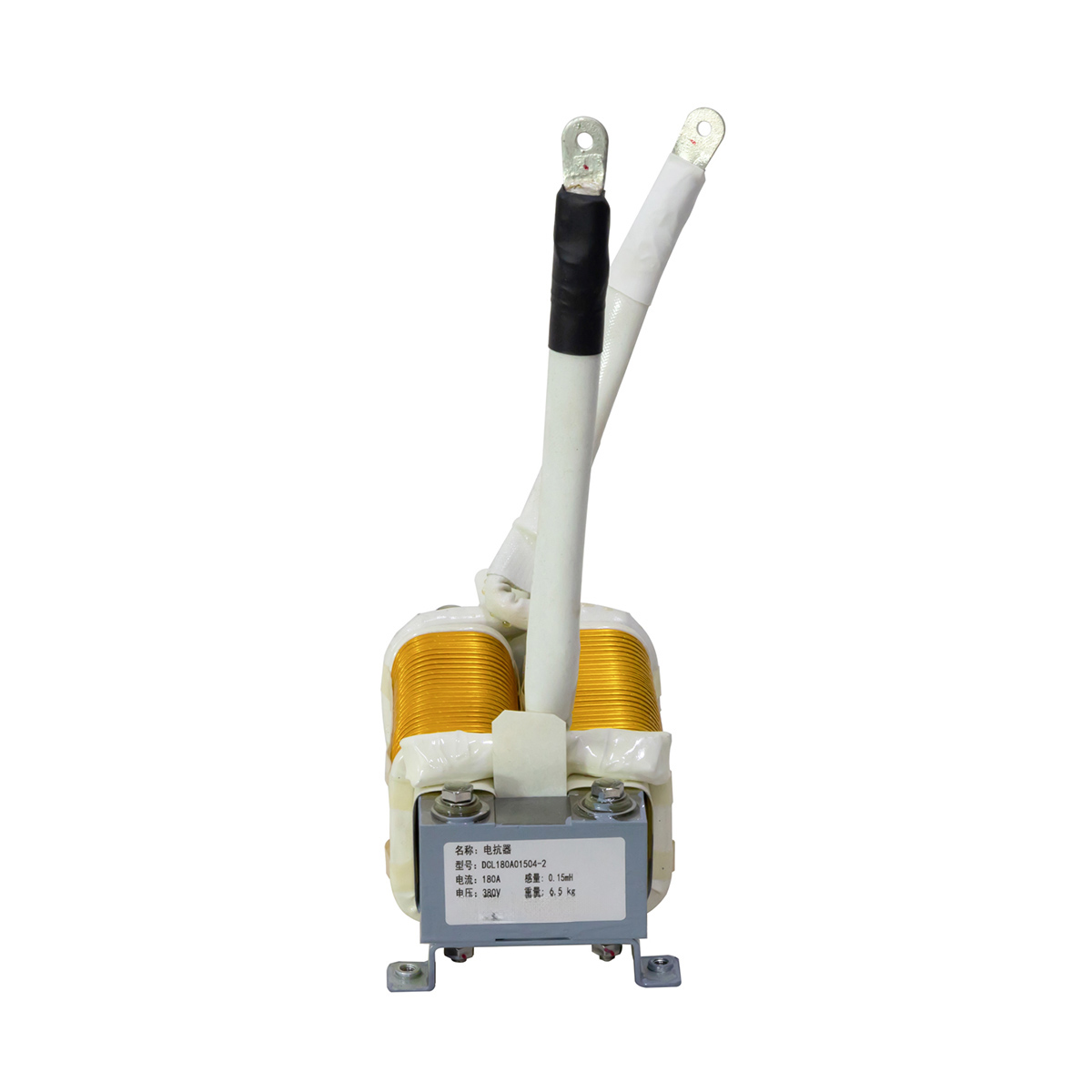

■  Product Introduction

DC smoothing reactor rectifier circuit being used to suppress ripple rectified pulsating  component and make rectified current continuously Improve the output waveform tributaries.to ensure the normal operation of the DC devices.

■  Product Application

5.Work with capactor to suppress or filter the current ripple for eliminating .negative influence onload

■  Technical Specifications

1.Work voltage:220VAC-1140VAC
2.Work frequency:50/60Hz.
3.Work current:3A-1600A
4.Insulation class:class F,H
5.Operation Environment:-10~…+45℃,rated value wont′t lower,when higer than 45℃,and every 1℃,the current will step down 2%
6.Protection class:IP00-IP22
7.Max Current:1.5×Rated current,continuous 60S
8:Noise:≤65dB
9.Temperature Rise:≤85K
10.Dielectric strength:Core Coil 3000VAC/50Hz/5mA/10s no electric arcing puncture(factory test)
11.Insulation Resistor:1000VDC insulation resistance value≥100M?
12.Under seal level 2000m
13.Running ambient temperature-25℃~+45℃,comparative moisture not over 90%.
14.No hazardous gas,no inflammables and explosives
15.With well-ventilated condition,ventilation devices shall be mounted if installatioh in panel

■  Applicable Standards

IEC289:1987 Reactor GB10229-88 Reactor（eqvIEC 289:1987）JB9644-1999 Reactors used for semiconductor electrical driving

■  Product Size



■  Product Identification Code
