■产品概述

现代电力电子设备的大量使用产生的非线性电流正以谐波方式影响电网并加重电网污染,并导致电容器,变压器及传输设备过载并故障,对测量,传动,计算等设备产生的严重干扰,谐振及电压畸变还造成供电事故。串联电抗器可得以改善与避免。电容器串联电抗器后谐振频率低于系统最低(一般为5次及7次),使其在工频下呈容性,以改善功率因数,而在谐振并无放大谐波之滤。良好的阻抗匹配之后,电容器组可吸收谐波电流(如5次)30%-60%。

■产品应用

  • 工作频率:50Hz-60Hz
  • 额定电流:5A-2000A
  • 工作电压:220V-10KV
  • 温升:≤95K
  • 噪音:≤65dB
  • 三相平衡度:-5%…+5%
  • 抗电强度:core-winding3000VAC/50Hz/5mA/10s free of arcing breakage(ftested in factory)
  • 绝缘电阻:1000VDC,insulation resistance≥100MΩ
  • 防护等级:IP00-IP20
  • 失调系数:5,67%,7%,14%
  • 性能范围:5Kvar…100kvar
  • 监控:temperature switch is integrated,contacts are fitted on terminals.
  • 环境温度/热绝缘等级:ta40℃/F,H
  • 安装海拔高度:≤2000m above sea level
  • 存储温度:-25℃…+55℃
  • 运输温度:-25℃…+70℃
  • 允许的额定湿度:humidity 5%…95% occasional condensation permissible

■执行标准:

  • IEC289:1987 Reactor
  • GB10229-88 Reactor(eqvIEC289:1987)
  • JB9644-1999 Reactor used for semiconductor electrical driving

■成品识别码

p=5.67%;L=恒定;不超过1.82·Ithmax;fRES=210Hz

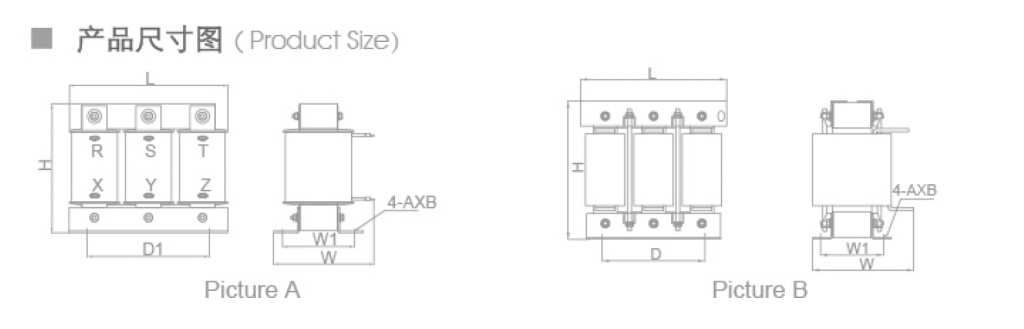

产品型号图号补偿容量(Kvar)电感系数外形尺寸(L*W*H)安装尺寸(D1*W1)额定电流(A)连接 K=端子 F=母排单台的近似总量(KG)
ATR002800400SA05.67XA56.12195*100*210120*728.0K3.7
ATR004300400SA05.67XA7.54.081195*100*210120*9212.0K5
ATR005700400SA05.67XA103.06195*150*165120*9216.0K6.4
ATR007100400SA05.67XA12.52.45195*165*165120*11220.0K9.1
ATR0085000400SA05.67XA152.04195*165*165120*11224.0K9.3
ATR011300400SA05.67XA201.53230*160*185150*9532.0K13
ATR014200400SA05.67BA251.22250*165*200182*9540.0K18.3
ATR017000400SA05.67BB301.02250*170*200182*10550.0F18
ATR022700400SA05.67BB400.77250*180*200182*11565.0F25.3
ATR028400400SA05.67BB500.61290*185*220214*11880.0F34.1
ATR034000400SA05.67BB600.51290*200*200214*12895.0F35.6
ATR045400400SA05.67BB800.38320*205*285243*130130.0F42
ATR051000400SA05.67BB900.34320*210*310243*135145.0F47
ATR056700400SA05.67BB1000.31320*220**310243*140160.0F51.9

P=7%;L=恒定;不超过1.66·Ithmax,fRES=189Hz

产品型号图号补偿容量(Kvar)电感系数外形尺寸(L*W*H)安装尺寸(D1*W1)额定电流(A)连接 K=端子 F=母排单台的近似总重(KG)
ATR003500400SA07XA57.2195*100*210120*727.5K3.3
ATR005300400SA07XA7.55195*100*210120*9211K4.8
ATR007000400SA07XA103.8195*150*165120*9215K5.9
ATR008800400SA07XA12.53195*165*165120*11219K8.6
ATR010500400SA07XA152.5195*165*165120*11223K8.8
ATR014000400SA07XA201.8230*160*185150*9530K12.8
ATR017500400SA07BB251.4250*165*200182*9538K19.1
ATR021000400SA07BB301.2250*170*200182*10545F19.6
ATR028000400SA07BB400.95250*180*200182*11560F24.7
ATR035000400SA07BB500.75290*185*220214*11875F26.5
ATR042000400SA07BB600.62290*200*220214*12890F34.1
ATR056000400SA07BB800.46320*205*285243*130122F40
ATR063000400SA07BB900.43320*210*310243*135130F45
ATR070000400SA07BB1000.37320*220*310243*140150F50

P=14%;L=恒定;不超过1.4·Ithmax,fRES=189Hz

产品型号图号补偿容量(Kvar)电感系数外形尺寸(L*W*H)安装尺(D1*W1)额定电流(A)连接 K=端子 F=母排单台的近似总量(KG)
ATR007000400SA14XA516.6195*120*210120*927K5.1
ATR010500400SA14XA7.511.1195*120*210120*11210K8.1
ATR014000400SA14XA108.29195*120*210120*11214K9.4
ATR017500400SA14XA12.56.63195*120*210120*11218K12
ATR021000400SA14XA155.53250*165*200182*9521K16
ATR028000400SA14XA204.14250*185*200182*11530K18
ATR035000400SA14BB253.32290*150*210214*11335K28
ATR042000400SA14BB302.76290*185*220214*11842K26
ATR056000400SA14BB402.07290*215*280214*11856F35.2
ATR070000400SA14BB501.663320*230*275243*13570F37.2
ATR084000400SA14BB601.38320*230*310243*13585F51.1
ATR112000400SA14BB801.04375*250*320260*165110F54
ATR126000400SA14BB900.92375*250*320260*165125F58
ATR140000400SA14BB1000.829375*265*360260*175140F62
